GREASE CAPS

Request a Quote

Hi-Tech Wire & Manufacturing is a leading provider of grease caps for the agricultural, recreational, and trailer markets.

Our caps are available in steel or galvanized steel, with options for yellow chromate, zinc, or black oxide plating.

Parts are inspected with state-of-the-art equipment using CMM, SPC, and geometric dimensioning to ensure our customers receive consistently accurate and reliable parts every time.

We make it our priority to provide our customers with superior quality parts and service at competitive prices with a quick turnaround. We also offer custom stocking programs to fit your production needs.

conical grease caps

Ordering & Customization

Find the technical specifications for our standard parts in the chart below. In addition to the dimensions listed, we can design and manufacture custom caps to fit your requirements.

Request a Quote

or Call 419-678-8376

Ordering & Customization

Find the technical specifications for our standard parts in the chart below. In addition to the dimensions listed, we can design and manufacture custom caps to fit your requirements.

Request a Quote

OR

Call 419-678-8376

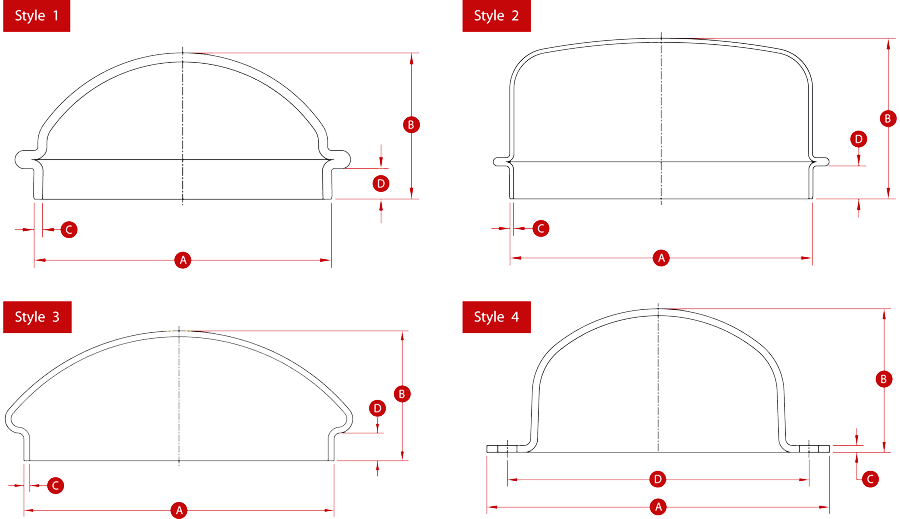

Grease Cap Illustration

Grease Cap Specifications

Hi-Tech Wire

Style

A

B

C

D

Part Number*

Number

IN

IN

IN

IN

HTW2001

1

3.157

1.790

0.060

0.410

HTW2002

3

2.446

1.220

0.057

0.280

HTW2003

3

1.96

0.980

0.060

0.380

HTW2004

1

2.722

1.440

0.036

0.320

HTW2007

3

2.445

1.240

0.075

0.310

HTW2008

3

3.124

1.310

0.060

0.280

HTW2010

2

1.988

1.030

0.033

0.250

HTW2013

2

1.785

1.160

0.033

0.280

HTW2015

4

6.250

2.620

0.105

5.500

HTW2016

4

5.750

1.810

0.060

5.000

HTW2019

2

2.445

1.340

0.033

0.310

HTW2026

1

2.448

1.200

0.074

0.280

HTW2036

1

1.975

0.970

0.060

0.340

HTW2041

4

6.250

1.910

0.105

5.500

HTW2042

1

1.784

1.010

0.060

0.310

HTW2044

3

2.503

1.000

0.060

0.500

HTW2046

1

3.378

1.810

0.036

0.310

HTW2048

3

2.719

1.010

0.075

0.440

HTW2050

1

3.951

2.240

0.075

0.310

HTW2051

2

1.942

1.380

0.060

0.280

HTW2053

2

3.357

1.660

0.036

0.590

HTW2055

1

1.983

1.000

0.060

0.330

HTW2056

3

2.333

1.190

0.075

0.420

HTW2079

2

1.990

1.200

0.030

0.310

HTW2082

3

1.986

0.910

0.060

0.380

HTW2083

4

4.500

1.810

0.105

3.750

HTW2084

3

3.155

1.380

0.064

0.280

HTW2100

4

5.750

1.850

0.100

5.000

HTW2103

4

9.200

3.250

0.105

7.500

HTW2104

4

3.875

1.110

0.105

3.375

HTW2107

4

4.630

1.360

0.105

4.125

HTW2113

4

9.200

3.250

0.105

8.000

HTW2114

4

3.875

1.110

0.105

3.375

HTW2115

4

3.620

1.060

0.060

3.000

HTW2118

1

4.255

2.250

0.060

0.380

HTW2123

4

10.000

2.100

0.100

9.250

HTW2124

2

1.580

0.540

0.039

0.250

HTW2129

4

4.000

1.000

0.060

3.425

HTW2136

4

6.250

2.620

0.120

5.710

HTW2145

2

2.250

1.260

0.035

0.225

See All Parts
